SQUARE SLIDE GATE VALVE

SQUARE SLIDE GATE VALVE

Product information

350x350 / 2000x2000

This valve is using for regulating valve and discharge valve at the dams and lakes.

Control

  • Electric actuator

  • Hydraulic actuator

DESIGN

  • Special design for operating pressure

  • Completely steel construction

  • Sealing surfaces are stainless steel

  • Gate level indicator

  • Special design square flanges

  • Handwheel operated

MATERIAL

  • Body and gate steel constructıon EN12516-1

  • Stainless steel sealing surfaces

  • Valve shaft stainless steel AISI 420

OPTIONAL

  • Input- output transition parts

CORROSION PROTECTION

  • Epoxy coating for drinking water

  • Zinch rich epoxy primer

  • Coal-tar epoxy coating

Production Colors

Production Diameters and Pressures

DN

  • 350x350
  • 400x400
  • 450x450
  • 500x500
  • 550x550
  • 600x600
  • 700x700
  • 800x800
  • 900x900
  • 1000x1000
  • 1100x1100
  • 1200x1200
  • 1300x1300
  • 1400x1400
  • 1500x1500
  • 1600x1600
  • 1700x1700
  • 1800x1800
  • 1900x1900
  • 2000x2000

PN

  • 2.5
  • 6

Documents

SGVS Square Slide Gate Valve Product Catalog IQ NET 9001

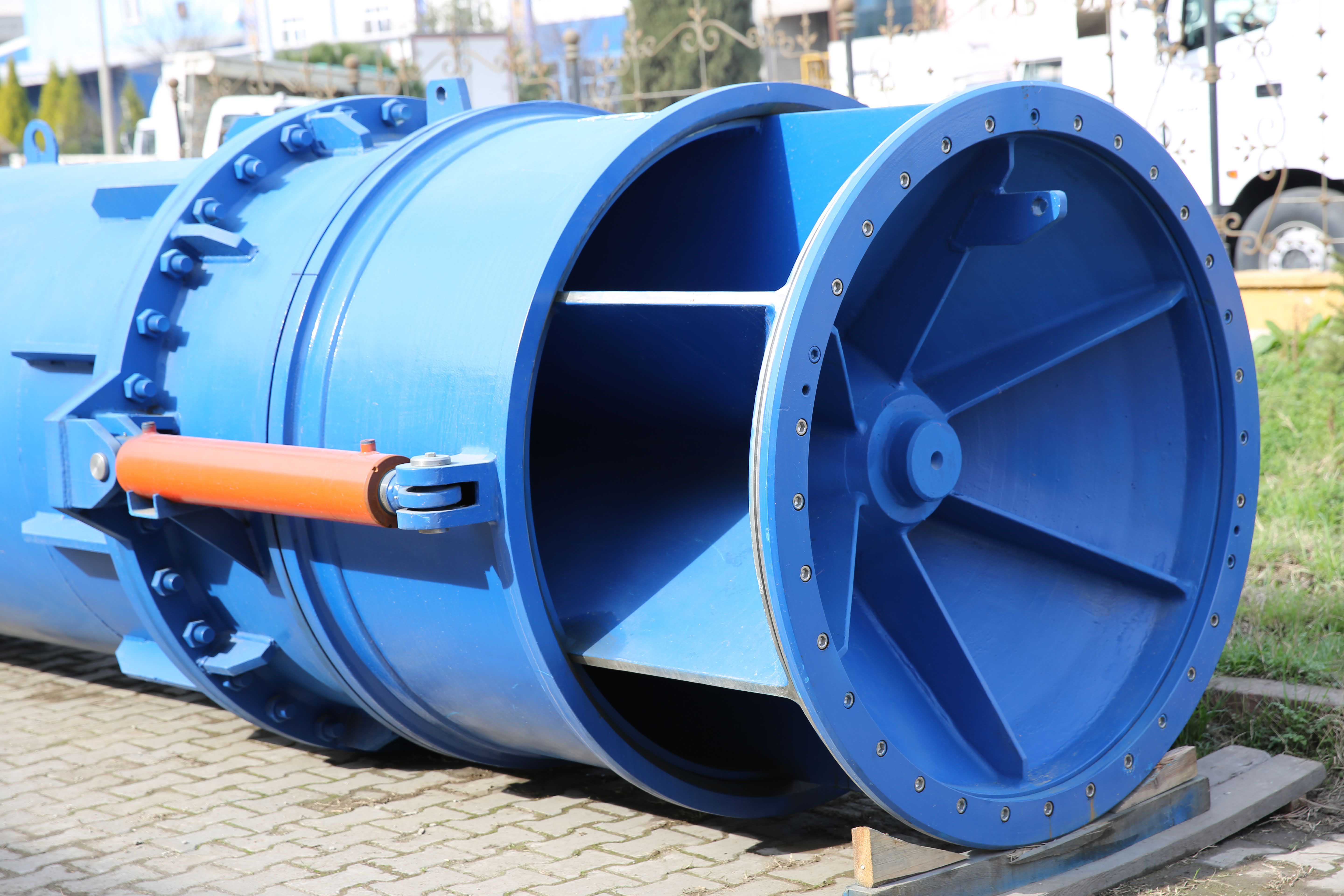

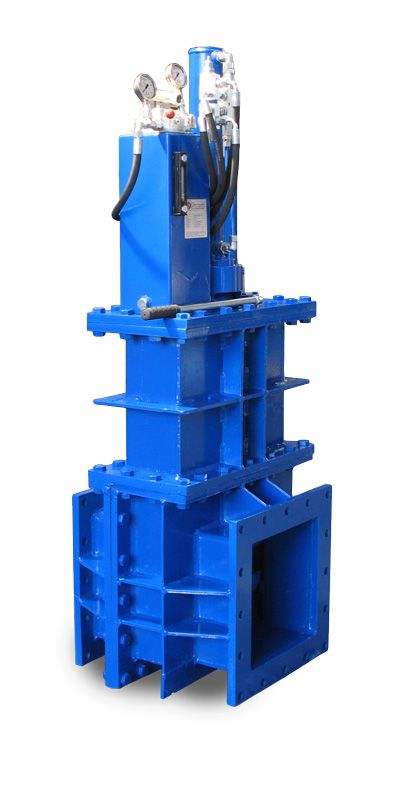

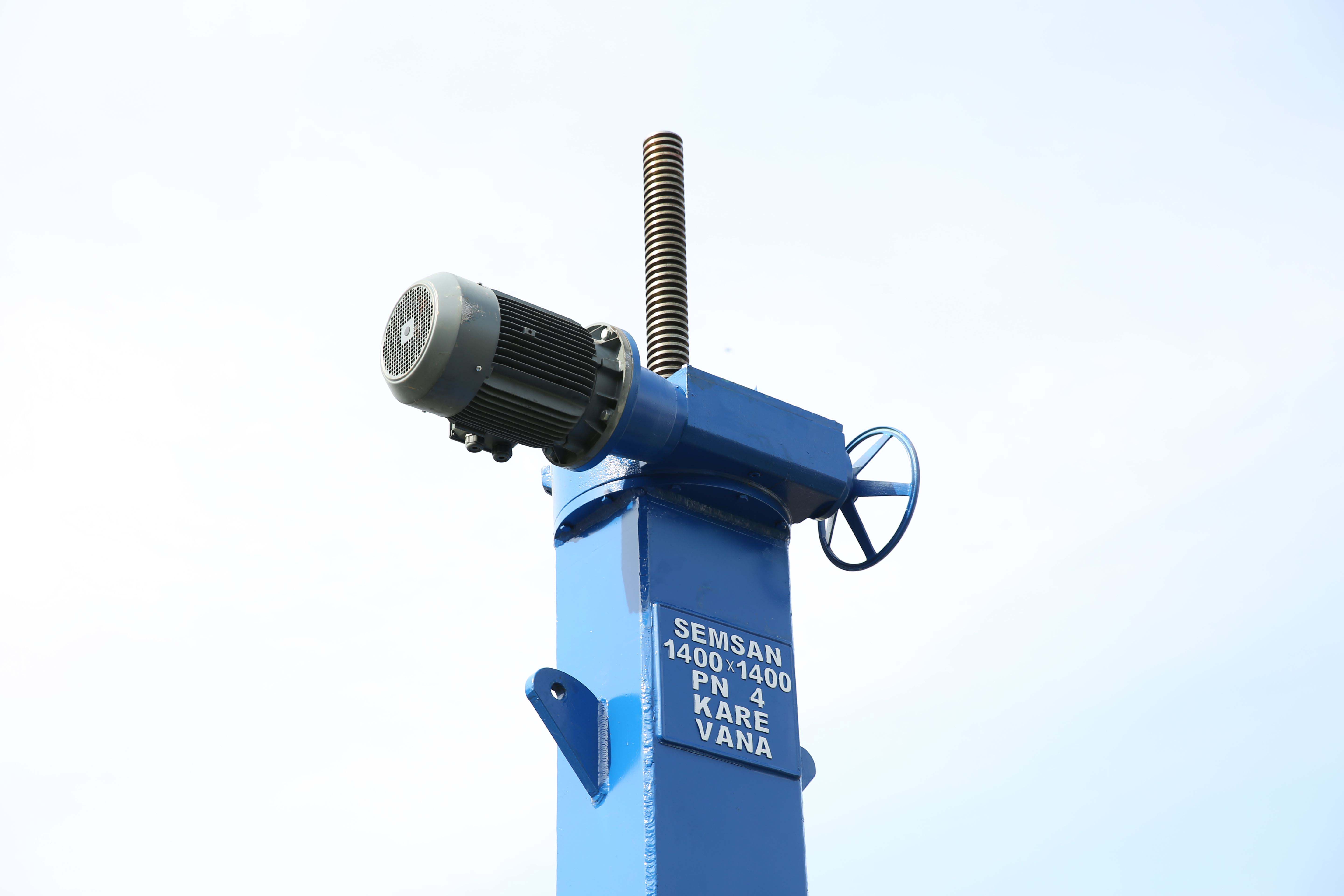

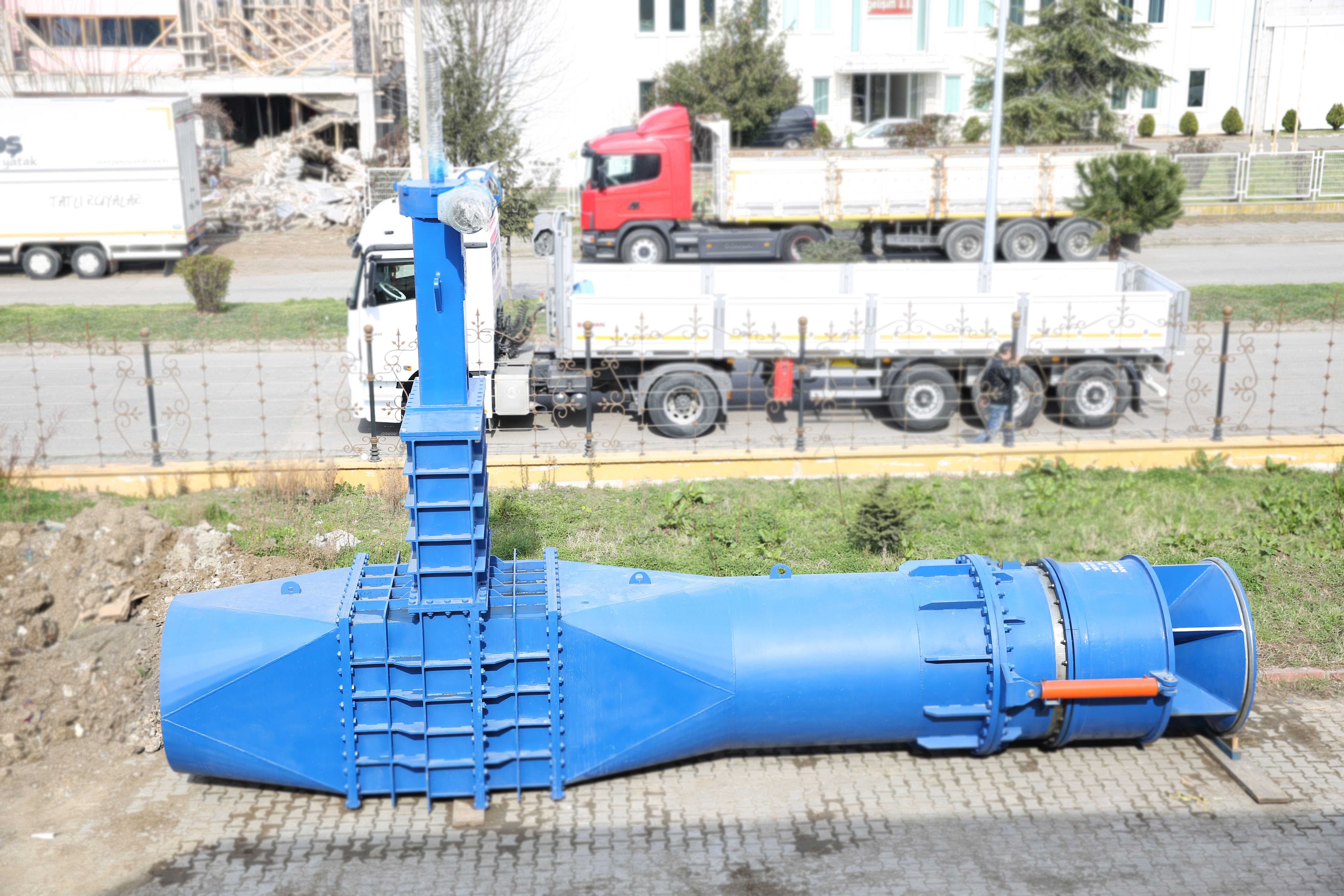

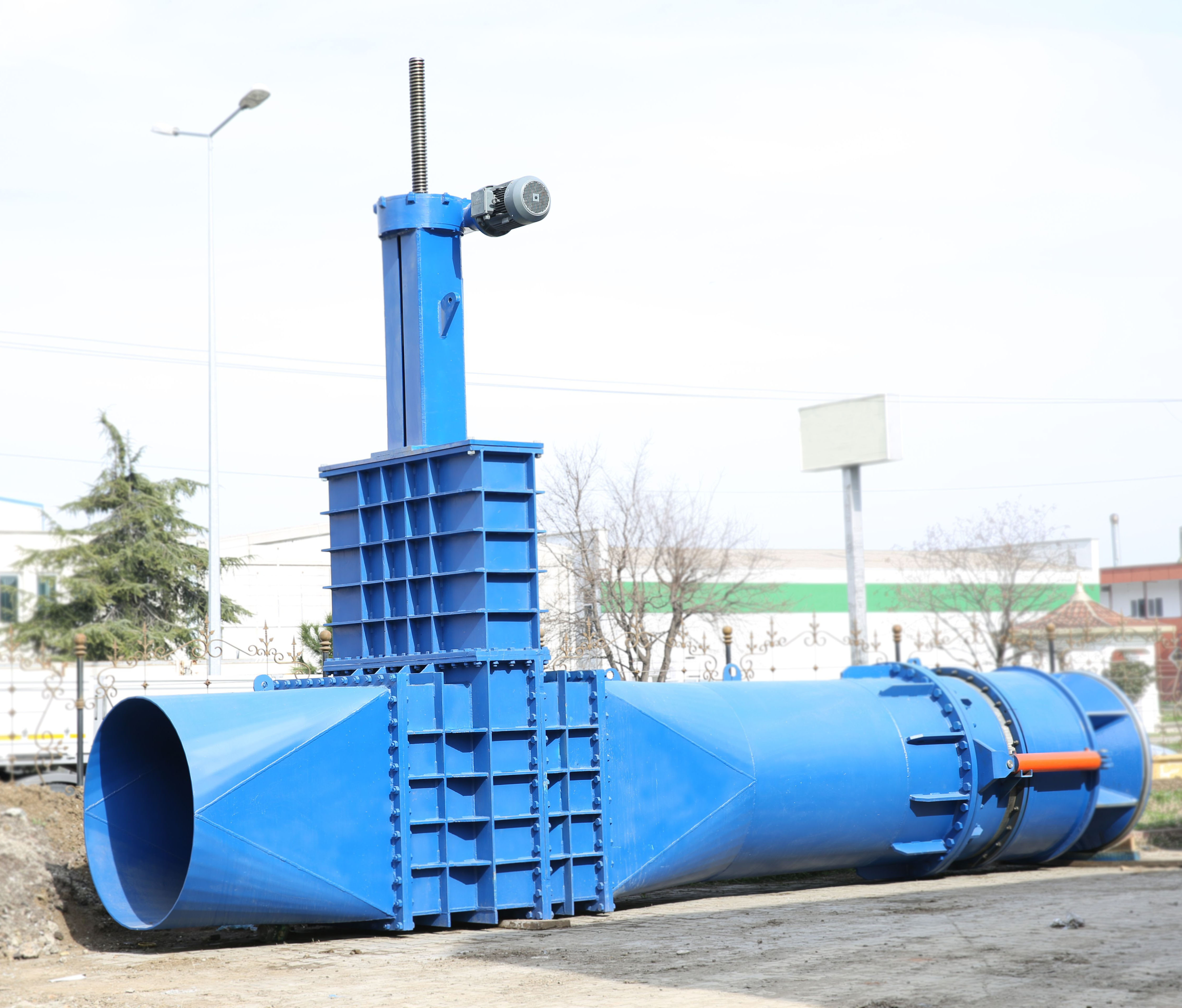

Product Images
