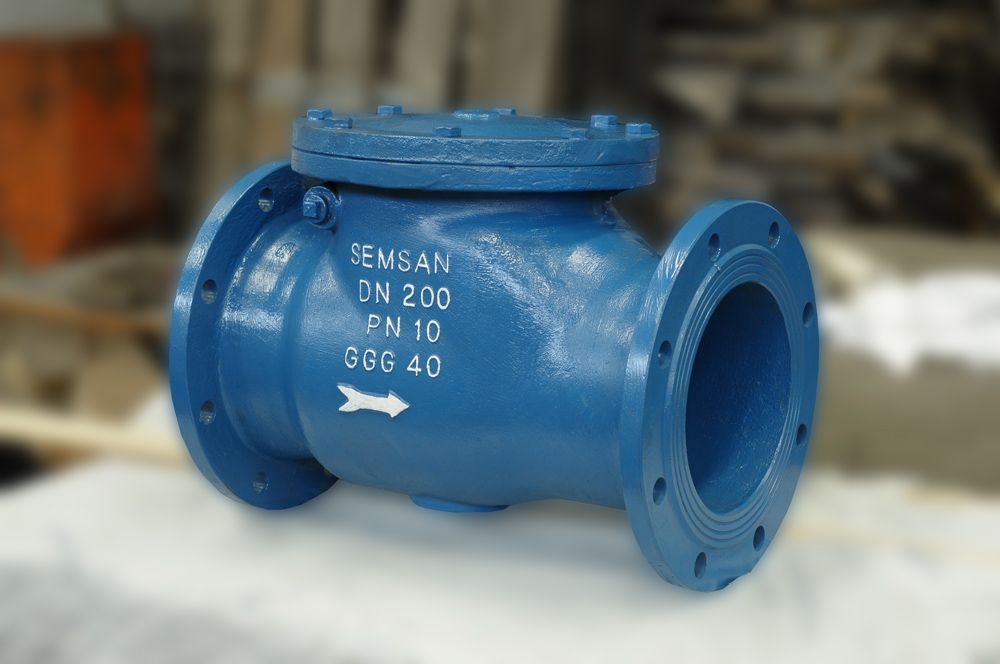

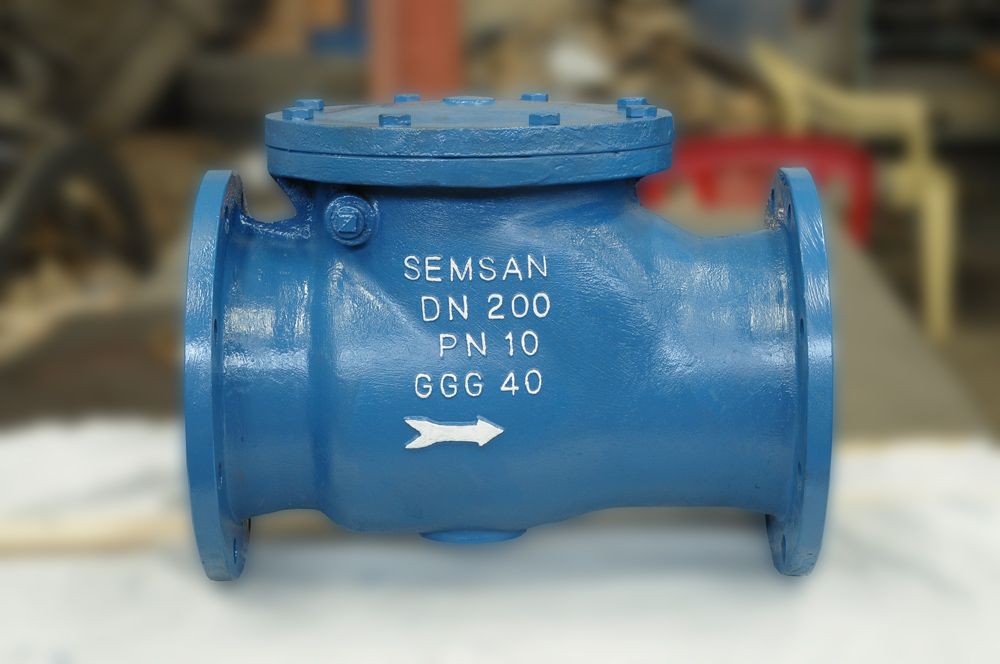

SWING CHECK VALVE

SWING CHECK VALVE

Product information

DN 40/1000 | PN 10/ 16

Control

  • Closing with hydraulic damper

  • Working with counterweight and without counterweight

DESIGN

  • TS EN 12334

  • Flanges DIN EN1092 - PN 10/16 Norms

  • Face to face EN558-1 series 48 (2DN+100)

  • Maximum operating temperature 50 °C

CORROSION PROTECTION

  • Electrostatic Powder Coating for Drinking Water

  • Zinch – Rich Epoxy Primer

  • Coal – Tar Epoxy

  • Glass Flake Epoxy

  • Enamel Epoxy for Ultraviolet

  • Completely Stainless Steel Design

  • Ebonite Coating for Seawaater

MATERIAL

  • Body and disk ductile iron GGG 40/50

  • Valve shaft stainless steel AISI 420

  • Shaft bearing is bronze

OPTIONAL

  • DN > 1000

  • PN > 16

  • Stainless steel disk and body

  • Adjustable and replaceable EPDM sealing ring

Production Colors

Production Diameters and Pressures

DN

  • İçerik Eklenmemiş

PN

  • İçerik Eklenmemiş

Documents

SCVS Swing Check Valve Product Catalog IQ NET 9001

Product Images

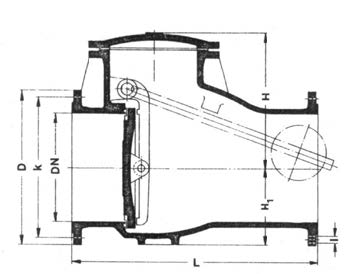

Dimension Lists

Dimension Table

DN PN10 PN16
H H1 Without Lever Lever Weight H H1 Without Lever Lever Weight
40 120 - 10 10,5 11,5 120 - 10 10,5 11,5
50 125 - 13 13 14 125 - 13 13 14
65 140 - 19,5 20 22,5 140 - 19,5 20 22,5
80 165 - 26 26 29 165 - 26 26 29
100 200 - 36 37,5 44 200 - 36 37,5 44
125 220 - 52,5 54,5 60 220 - 52,5 54,5 60
150 240 - 68 72 76 240 - 58 72 76
200 285 - 115 118 130 285 - 115 118 130
250 315 - 155 165 185 315 - - - -
300 365 245 230 230 270 365 245 - - -
350 400 285 320 326 355 - - - - -
400 455 310 430 442 480 - - - - -
500 560 380 710 710 750 - - - - -
600 630 450 980 980 1025 - - - - -
700 795 525 1490 1490 1565 - - - - -
800 855 610 2100 2100 2175 - - - - -
900 925 680 2900 2900 2980 - - - - -
1000 980 730 3700 3700 3780 - - - - -

Flange Dimensions

DN PN10 PN16 PN25 PN40
D K d2 No. of Holes b D K d2 No. of Holes b D K d2 No. of Holes b D K d2 No. of Holes b
50 165 125 19 4 19 165 125 19 4 19 165 125 19 4 19 165 125 18 4 20
65 185 145 19 4 19 185 145 19 4 19 185 145 19 4 19 185 145 18 8 22
80 200 160 19 8 19 200 160 19 8 19 200 160 19 8 19 200 160 18 8 24
100 220 180 19 8 19 220 180 19 8 19 220 180 19 8 19 235 190 22 8 24
125 250 210 19 8 19 250 210 19 8 19 270 220 28 8 19 279 220 26 8 26
150 285 240 23 8 19 285 240 23 8 19 300 250 28 8 20 300 250 26 8 28
200 340 295 23 8 20 340 295 23 12 20 360 310 28 12 22 375 320 30 12 34
250 395 350 23 12 22 405 355 28 12 22 425 370 31 12 24,5 450 385 33 12 38
300 445 400 23 12 24,5 460 410 28 12 24,5 485 430 31 16 27,5 515 450 33 16 42
350 505 460 23 16 24,5 520 470 28 16 26,5 555 490 34 16 30 580 510 36 16 46
400 565 515 28 16 24,5 580 525 31 16 28 620 550 37 16 32 660 585 39 16 50
450 615 565 28 20 25,5 640 585 31 20 30 670 600 37 20 34,5 685 610 39 20 50
500 670 620 28 20 26,5 715 650 34 20 31,5 730 660 37 20 36,5 755 670 42 20 52
600 780 725 31 20 30 840 770 37 20 36 845 770 41 20 42 890 795 48 20 60
700 895 840 31 24 32,5 910 840 37 24 39,5 760 875 44 24 46,5 995 900 48 20 64
800 1015 950 34 24 35 1025 950 41 24 43 1085 990 50 24 51 1140 1030 56 24 72
900 1115 1050 34 28 37,5 1125 1050 41 28 46,5 1185 1090 50 28 55,5 1250 1140 56 28 76
1000 1230 1160 37 28 40 1255 1170 44 28 50 1320 1210 57 28 60 1360 1250 56 28 80
1100 1340 1270 37 32 42,5 1355 1270 44 32 53,5 1420 1310 57 32 64,5 1470 1380 56 28 84
1200 1455 1380 41 32 45 1485 1390 50 32 57 1530 1420 57 32 69 1575 1460 62 32 88
1300 1570 1490 44 32 46 1590 1490 49 32 60 1640 1530 62 32 74 1685 1570 62 32 94
1400 1675 1590 44 36 46 1685 1590 50 36 60 1755 1640 62 36 74 1795 1680 62 36 98
1500 1785 1700 44 36 47,5 1820 1710 57 36 62,5 1865 1750 62 36 77,5 1910 1790 64 36 104
1600 1915 1820 50 40 49 1930 1820 57 40 65 1975 1860 62 40 81 2025 1900 70 40 108
1800 2115 2020 50 44 52 2130 2020 57 44 70 2195 2070 70 44 88 - - - - -
2000 2325 2230 50 48 55 2345 2230 62 48 75 2425 2300 70 48 95 - - - - -
2200 2550 2440 56 52 59 - - - - - - - - - - - - - - -
2400 2760 2650 56 56 62 - - - - - - - - - - - - - - -
